Elastic Link Table

Enter or modify elastic links in a spreadsheet format Table.

Table Tool in midas Civil offers a variety of powerful built-in functions. Refer to the following items for detail directions:


Usage of Table Tool

Terminology

Familiarize with Usage

Basic directions (Cell motion, selection, size control, etc.)

Data manipulation (Add, delete, modify data, etc.)

Copy/Paste data using clipboard

Supplementary Table functions

Table Sorting

Table format setting

Auto-fit column width

Graph printing

Supplementary functions by Table types

Node/Element Table

Results Table

From the Main Menu select Boundary > Tables > Boundary Tables > Elastic Link.

Refer to "Elastic Link")

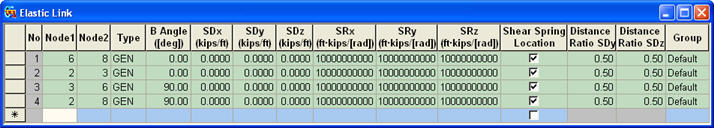

Refer to Usage of Table Tool and enter or modify the following data:

Node1: Starting node number of the elastic link element

Node2: Ending node number of the elastic link element

Type: Type for the elastic link element

Angle: Angle defining the elastic link orientation

SDx: Stiffness in the element's local x-direction

SDy: Stiffness in the element's local y-direction

SDz: Stiffness in the element's local z-direction

SRx: Rotational stiffness about the element's local x-axis

SRy: Rotational stiffness about the element's local y-axis

SRz: Rotational stiffness about the element's local z-axis

Shear Spring Loaction: Shear Spring Location of elastic link element

Distance Ratio SDy: Shear Spring (SDy) Location relative to the length of elastic link element from i-node

Distance Ratio SDz: Shear Spring (SDz) Location relative to the length of elastic link element from i-node

Group: Boundary Group in which the entered boundary conditions are included
