Shrink Elements
Display the modeled elements shrunk by a fixed ratio at nodes. Use .jpg){kind=small}
Display Option to adjust the shrink ratio.
The function is very useful when verifying the connection conditions of nodes and elements.
From the Main Menu select View > Render View > Shrink Elements.
Click .jpg){kind=small}
Shrink in the Icon Menu.
Shortcut key: [Ctrl]+K
The model below is a display created by Shrink, Perspective and Hidden. Use Display Option to adjust the Factor, Scale and other pertinent controls.

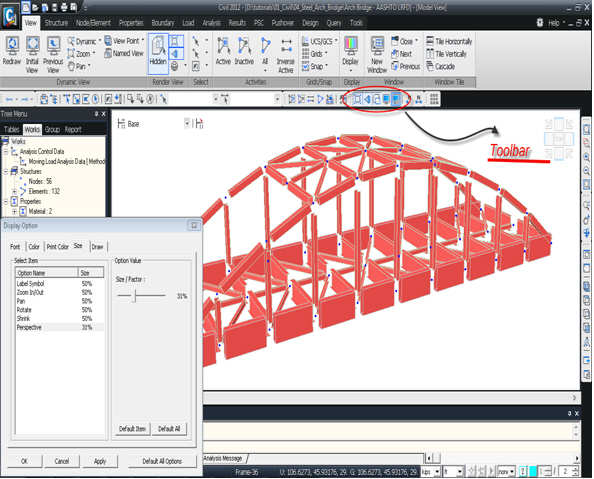

<Fig. 1> Arch Bridge created using Shrink, Perspective & Hidden
