Concrete Stress Data
|
|
|

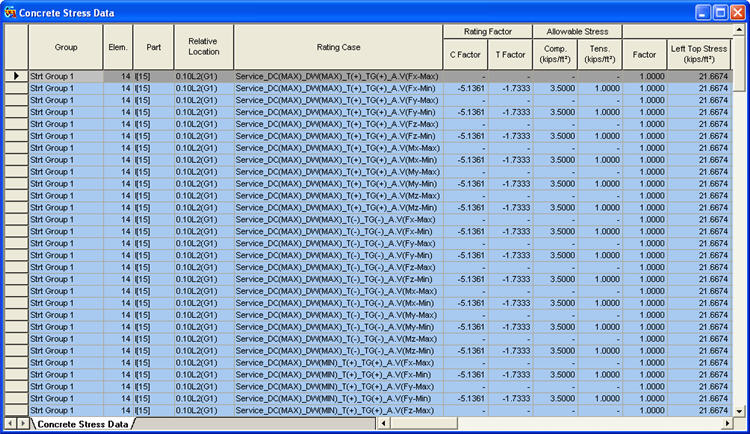

Displays the Bridge Load Rating Design results for all the Concrete Stress Rating Cases as per the Service Limit State. |
|
|
|
From the Main Menu select Design > Bridge Rating Design > Rating Design > Rating Design Result Tables > Concrete Stress Data. |
|
|
Group: User Specified element group name. Elem.:Designed element Part:Location of the member [node or node]. Rating Case:The design condition that will generate corresponding member results. Rating Factor C Factor: Rating Factor for compression stress. T Factor:Rating Factor for tensile stress. DC Factor:The DC load case factor inputted in Bridge Load Rating Setting. Left Top Stress (tonf/m2):The stress at left-top corner of the section due to DC Load Case. Right Top Stress (tonf/m2):The stress at right-top corner of the section due to DC Load Case. Right Bottom Stress (tonf/m2):The stress at right-bottom corner of the section due to DC Load Case. Left Bottom Stress (tonf/m2):The stress at left-bottom corner of the section due to DC Load Case. DW Factor: The DW load case factor inputted in Bridge Load Rating Setting. Left Top Stress (tonf/m2): The stress at the left-top corner of section due to DW Load Case. Right Top Stress (tonf/m2): The stress at the right-top corner of section due to DW Load Case. Right Bottom Stress (tonf/m2):The stress at the right-bottom corner of the section due to DW Load Case. Left Bottom Stress (tonf/m2):The stress at left-bottom corner of the section due to DW Load Case. Temperature Factor: The Temperature load case factor inputted in Bridge Load Rating Setting. Left Top Stress (tonf/m2):The stress at the left-top corner of section due to Temperature Load Case. Right Top Stress (tonf/m2): The stress at the right-top corner of section due to Temperature Load Case. Right Bottom Stress (tonf/m2):The stress at the right-bottom corner of section due to Temperature Load Case. Left Bottom Stress (tonf/m2): The stress at the left-bottom corner of section due to Temperature Load Case. Permanent Factor:The Permanent load case factor inputted in Bridge Load Rating Setting. Left Top Stress (tonf/m2):The stress at the left-top corner of section due to Permanent Load Case. Right Top Stress (tonf/m2):The stress at the right-top corner of section due to Permanent Load Case. Right Bottom Stress (tonf/m2):The stress at the right-bottom corner of section due to Permanent Load Case. Left Bottom Stress (tonf/m2):The stress at the left-bottom corner of section due to Permanent Load Case. Secondary Factor:The Secondary load case factor inputted in Bridge Load Rating Setting. Left Top Stress (tonf/m2):The stress at the left-top corner of section due to Secondary Load Case. Right Top Stress (tonf/m2):The stress at the right-top corner of section due to Secondary Load Case. Right Bottom Stress (tonf/m2):The stress at the right-bottom corner of section due to Secondary Load Case. Left Bottom Stress (tonf/m2):The stress at the left-bottom corner of section due to Secondary Load Case. User Defined Factor:The User Defined load case factor inputted in Bridge Load Rating Setting. Left Top Stress (tonf/m2): The stress at the left-top corner of section due to User Defined Load Case Right Top Stress (tonf/m2): The stress at the right-top corner of section due to User Defined Load Case Right Bottom Stress (tonf/m2):The stress at the right-bottom corner of section due to User Defined Load Case Left Bottom Stress (tonf/m2):The stress at the left-bottom corner of section due to User Defined Load Case Pri.LL Factor: The Primary Live Load factor inputted in Bridge Load Rating Setting. Left Top Stress (tonf/m2): The stress at the left-top corner of section due to Primary Live Load Case Right Top Stress (tonf/m2): The stress at the right-top corner of section due to Primary Live Load Case Right Bottom Stress (tonf/m2):The stress at the right-bottom corner of section due to Primary Live Load Case Left Bottom Stress (tonf/m2):The stress at the left-bottom corner of section due to Primary Live Load Case Adj.LL Factor:The Adjacent Live Load factor inputted in Bridge Load Rating Setting. Left Top Stress (tonf/m2):The stress at the left-top corner of section due to Adjacent Live Load Case Right Top Stress (tonf/m2): The stress at the right-top corner of section due to Adjacent Live Load Case Right Bottom Stress (tonf/m2):The stress at the right-bottom corner of section due to Adjacent Live Load Case Left Bottom Stress (tonf/m2): The stress at the left-bottom corner of section due to Adjacent Live Load Case
Note If the result does not satisfy the standard specification of design, then it is displayed in red. |
|
