Curve: Create 3D Arc

Function

Create independent Arcs of the edge type in space using 3D coordinates.

Call

Main Menu : Geometry > Curve > Create 3D > Arc...

<3D Arc>

Location

Enter the coordinates of the locations.  The coordinates are expressed in different forms noted below.

The Center [(Abs x, y, z)], Start [(Abs x, y, z)] and End [(Abs x, y, z)] Locations are sequentially specified. : (Example)


The Start [(Abs x, y, z)], any point on the Arc [(Abs x, y, z)] and End [(Abs x, y, z)] Locations are sequentially specified. : (Example)


<Methods of Entering Coordinates>

ABS x, y, z

Enter 3-D coordinates for an absolute location in space.

Note

When we enter coordinates using the mouse, the coordinates are automatically entered by a left-click on the desired point, without having to press the Apply button.

However, when coordinates are typed in, either the Enter key or the Apply button needs to be pressed.

Example: Create 3D Arc

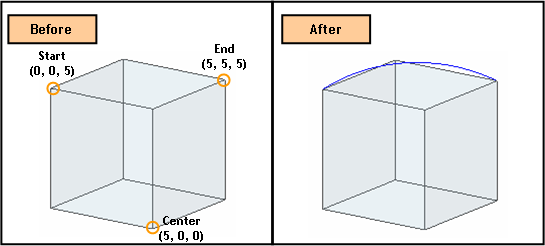

Center & 2 Points

<Instruction>

1. Select the first Method.

2. After checking the message of Input Center Location, input (5, 0, 0) at Location and click [Apply].

3. After checking the message of Input Start Location , input (0, 0, 5) at Location and click [Apply].

4. After checking the message of Input End Location, input (5, 5, 5)at Location and click [Apply].

Note

1. Using Enter key is as same as clicking [Apply].

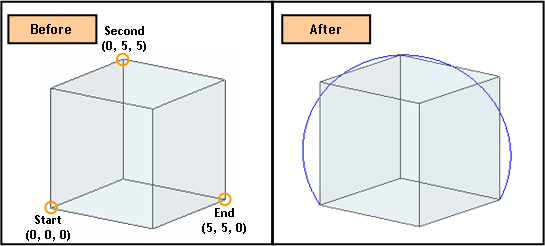

3 Points Arc

<Instruction>

1. Select the second Method.

2. After checking the message of Input Start Location, input (0, 0, 0) at Location and click [Apply].

3. After checking the message of Input Second Location, input (0, 5, 5) at Location and click [Apply].

4. After checking the message of Input End Location, input (5, 5, 0) at Location and click [Apply].

Note

1. Using Enter key is as same as clicking [Apply].
