Curve: Intersect

Function

Separate Curves (Edge, Wire) into independent curves at the intersection points.

Call

Main Menu : Geometry > Curve > Intersect...

<Intersect>

Select Entities to Intersect

Select the curves (Edge, Wire) to be separated through an Intersection operation.  After the operation, the source curves disappear and only the modified edges remain

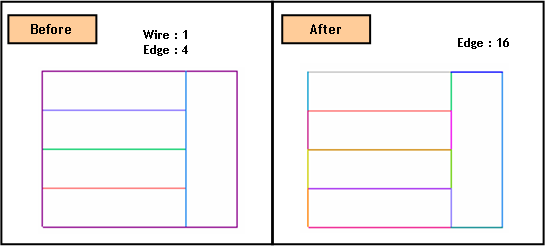

Example: Intersect Edge

 Intersect Edge

<Instruction>

1. After checking the message of Select Entities to Intersect, click (Displayed All).

2. Intersect Curves by clicking [Apply].
