Frame->Solid
Function
It converts frame data from midas Civil or midas Gen to Solid model. During the conversion, it can generate mesh directly.
Call
Main Menu : Geometry > MIDAS Frame->Solid...

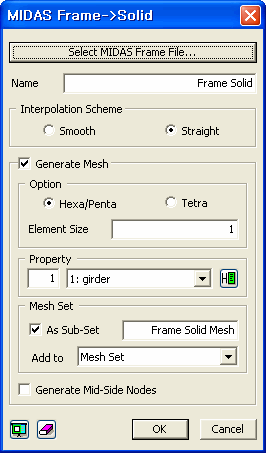

<MIDAS Frame->Solid>
Select MIDAS Frame File...
Choose a data file of midas Civil or midas Gen.
Interpolation Scheme
Select a interpolation scheme between two sections at both ends.
Smooth
Curved interpolation
Straight
Straight interpolation
Name
Enter the name for Solid.
Generate Mesh
Generate mesh on the converted solid.
Option
Hexa/Penta
Tetra
Element Size
Specify element size
