Mesh Set: Divide Mesh Set by Surface









Function

Mesh sets can be divided using a surface.









Call

 Mesh > Mesh Set > Divide Mesh Set by Surface

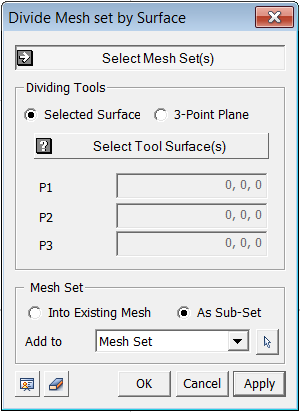

<Divide Mesh Set by Surface>

Select Mesh Set(s)

Select the mesh set that will be divided.



Dividing Tools



Select dividing methods:

"Selected surface" or "3-Point Plane"



Select Tool Surface:

Tool surface such as Datum Plane, shell,and Face can be used to separate  mesh set.



3-Point Plane:

Users can select 3-points in the same plane to separate mesh sets.



Mesh Set

Users can assign the separated mesh set into an existing mesh folder or set it as a sub-set.



Add to:

Specify the name of mesh set folder.
