Remesh: Remesh Face

Function

Remesh Face replaces 1D Mesh of Faces (Face, Shell) on which 2D mesh is already generated.  Only meshed Face can  be selected, and previously generated mesh will be delete upon remeshing.

Call

Mesh > Remesh > Face

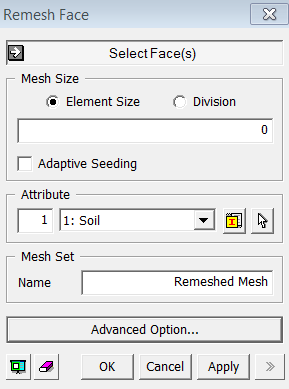

<Remesh Face>

Select Face(s)

Select Faces (Face, Edge), which will be remeshed.

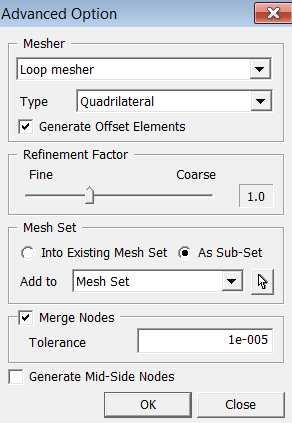

Mesher

Select mesh generation algorithm and element type.


Loop Mesher

Construct meshes using the Loop Mesh generating algorithm.


Quadrilateral

Generate Quadrilateral 2D meshes.
Triangle

Generate Triangle 2D meshes.


Grid Mesher

Construct meshes using the Grid Mesh generating algorithm.


Quad + Tria

Generate 2D meshes using both Quadrilaterals and Triangles.
Triangle

Generate Triangle 2D meshes.


Delaunay Mesher

Construct meshes using the Delaunay Mesh generating algorithm.


Quadrilateral

Generate Quadrilateral 2D meshes.
Quad + Tria

Generate 2D meshes using both Quadrilaterals and Triangles.
Triangle

Generate Triangle 2D meshes.


Generate Offset Element

Construct meshes at the boundaries of the selected faces first, and then expand the meshes inward.  This command may be applicable for generating quadrilateral meshes using the Loop Mesher or the Grid Mesher.

Mesh Size

Element Size

Specify the element size.
Division

Specify the number of divisions at the boundary edges of the shapes for a meshing operation.
Adaptive Seeding

If the division for nodes for selected edges is improper for the geometry to be well represented by elements, Adaptive Seeding is applied while ignoring the seeding value, provided that the Adaptive Seeding criteria are satisfied.


Refinement Factor

The size of elements within the selected shapes is determined.  The scroll bar controls the mesh density, for instance, the Fine option creates a dense mesh while the Coarse option creates a sparse mesh.

Property

Mesh Set

Merge Nodes

Generate Mid-side Nodes

Hide Object Face(s) After Meshing

This option hides the object faces after generating meshes.

Notes

If the object have been seeded previously, the size information will still be applied during remeshing. In order to apply new size information, delete the previous size control.
