Boundary: Boundary Set










Function

Define a Boundary Set.









Call

 Model > Boundary > Boundary Set

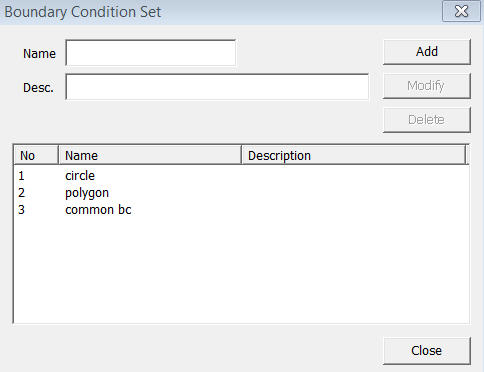

<BC Set>



Name

Enter the name of Boundary Set to be created, modified or deleted



Desc.

Type a brief description about the Boundary Set.



Button_Add.png : The entered Boundary Set is created.


Button_Modify.png : The designated Boundary Set is modified.


Button_Delete2.png : The selected Boundary Set is deleted. The use of [Ctrl] key permits selection of multiple Boundary Sets.
