Beam

• Function

Use Beam Wizard to auto-generate a number of horizontal Beam Elements on the same line.

• Call

From the Main Menu select Model > Structure Wizard > Beam.

Select Geometry > Structure Wizard > Beam from the Menu tab of the Tree Menu.

• Entry

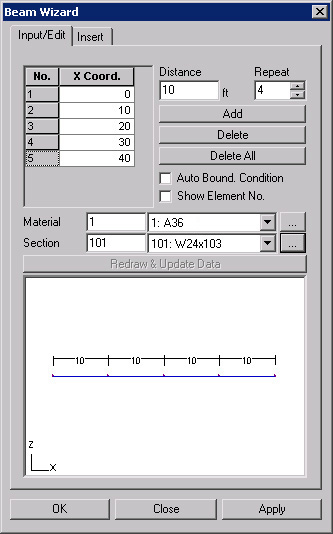

Input & Edit dialog box

 Input & Edit tab

Distance

Enter the distance between the nodes.

Repeat

Enter the number of repetitions to create multiple beam elements.

Create nodes as per the entered distance between the nodes and the number of repetitions.

Delete the selected nodes.

Delete all the entered nodes.

Auto Bound. Condition

Option to assign simple support condition for each node.

Show Element No.

Option to display the element numbers for the created beams.

Material

Enter the material property to be used.

Click to add a new material property or modify an existing material property.

Section

Enter the section to be used.

Click to add a new section or modify an existing section.

Insert Dialog Box

 Insert tab

Insert Point

Enter the coordinates of the insert point of the created beams in the existing model with respect to the GCS(UCS).

Alternatively, click the entry field and click the position of the insert point in the working window to enter the desired coordinates rather than typing in the entry field.

Rotations

Enter the rotational angles, Alpha, Beta and Gamma, that will define the orientation of the beams in GCS X, Y and Z respectively.

Merge Duplicate Nodes

Select the option whether to merge overlapping nodes between the existing model and the nodes pertaining to the newly created beams.

 : Set a tolerance for merging nodes.

Intersect Frame Elements

Select the option whether to divide the existing elements at the nodes pertaining to the newly created beams, which are in contact with the existing elements in the existing model.

 : Set an intersecting tolerance to allow for the division of elements.

Origin Point

Set the origin point of the newly created beams. This point is displayed in red in the Wizard Window.

Show No.: Display the node numbers making up the created beams.
