Compact Node Numbers

Determine the unused node numbers and reassign sequential node numbers.

From the Main Menu select Model > Nodes > Compact Numbers.

Select Geometry > Nodes > Compact Numbers in the Menu tab of the Tree Menu.

Click Compact Node Numbers in the Icon Menu.

Shortcut key: [Ctrl]+[Alt]+9

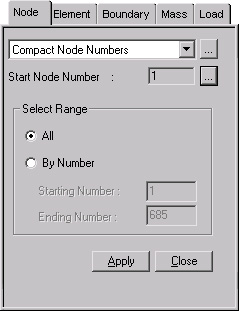

Click  to the right of Compact Node Numbers: Display Node Table

Start Node Number

Not applicable for this command.



Select Range

Assign the range of node numbers to compact.

All: All the nodes are targeted

By Number: A particular range of node numbers is targeted

Starting Number: Starting node number of the range

Ending Number: Ending node number of the range
