Function
Move or copy elements symmetrically with respect to a particular Mirroring Plane.
Call
From the Main Menu select Model > Elements > Mirror.
Select Geometry > Elements > Mirror in the Menu tab of the Tree Menu.
Click Mirror Elements in the Icon Menu.
Shortcut key: [Alt]+6
Entry
|

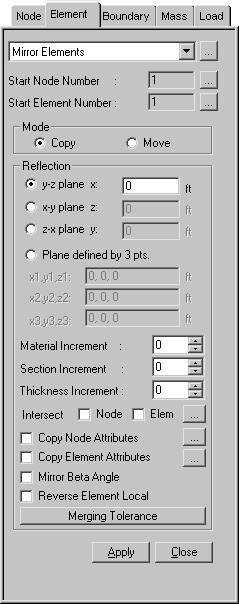

Click to the right of Mirror Elements : Display the Element Table. Start Node NumberAssign a starting number of the nodes automatically created in the element generation process. This number is auto-set to the largest node number in use +1. To modify this item, click and select an option to specify a desired number.
Start Element NumberAssign a new starting element number for new elements being created by copy. This number is auto-set to the largest element number in use +1. To modify this item, click and select an option to specify a desired number.
ModeCopy: To copy elements Move: To move elements |
Reflection : Assign the mirroring plane.
y-z plane: Mirroring plane is parallel to the y-z plane.
x: x coordinate of the mirroring plane
x-y plane: Mirroring plane is parallel to the x-y plane.
z: z coordinate of the mirroring plane
z-x plane: Mirroring plane is parallel to the z-x plane.
y: y c.oordinate of the mirroring plane
Plane defined by 3 pts.: Mirroring plane is an arbitrary plane.
x1, y1, z1: x, y, z coordinates of the 1st point defining
the mirroring plane
x2, y2, z2: x, y, z coordinates of the 2nd point defining
the mirroring plane
x3, y3, z3: x, y, z coordinates of the last point
defining the mirroring plane
The coordinates of the three points may be directly typed in on the keyboard. Alternatively, click the relevant entry field and the desired point in the working window to enter the x, y, z coordinates.
Material Increment: An increment for material property numbers while copying elements
Section Increment: An increment for section numbers while copying elements
Thickness
Increment: An increment for thickness numbers while copying elements
Intersect
Applicable only for line elements
If Intersect Node is selected, and existing nodes are on the created line elements, the elements are divided at the existing nodes.
If Intersect Element is selected, and the created line elements intersect with existing line elements, nodes are automatically created and the elements are divided at the intersections.
Copy Node
Attributes
Select the option whether to copy the attributes (nodal boundary conditions,
nodal concentrated loads, etc.) to the nodes being copied. Click to assign desired attributes selectively.
Copy Element
Attributes
Select the option whether to copy the attributes (element boundary conditions,
element loads, etc.) to the elements being copied. Click to assign desired attributes selectively.
Mirror Beta
Angle
While copying or moving elements by mirroring, select whether to mirror
the Beta Angle attributes to be symmetrical about the reflecting plane.
Reverse
Element Local
While copying or moving elements by mirroring, select whether to mirror
the ECS to be symmetrical about the reflecting plane.
For Line Element, Beta Angle remains unchanged and only nodes i, j (Local Direction) are changed.
For Planar Element, the node entry sequence is reversed during the generation of elements.
For Solid
Element, the node entry sequence is reversed during the generation
of elements.
Specify a merging tolerance to merge newly created nodes and existing nodes.
