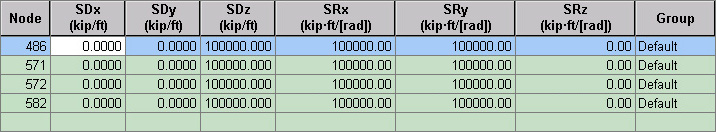

Point Spring Supports Table

• Function

Enter or modify point spring stiffness data for each GCS direction in a spreadsheet format Table.

Table Tool in midas offers a variety of powerful built-in functions. Refer to the following items for detail directions:


Usage of Table Tool

Terminology

Familiarize with Usage

Basic directions (Cell motion, selection, size control, etc.)

Data manipulation (Add, delete, modify data, etc.)

Copy/Paste data using clipboard

Supplementary Table functions

Table Sorting

Table format setting

Auto-fit column width

Graph printing

Supplementary functions by Table types

Node/Element Table

Results Table

• Call

From the Main Menu select Model > Boundaries > Point Spring Supports Table.

Select Structure Tables > Boundaries > Point Spring Supports in the Tables tab of the Tree Menu.

• Entry (Refer to "Point Spring Supports")

Refer to Usage of Table Tool and enter or modify the following data:

Node: Node number

SDx: Spring stiffness in GCS X-direction (Node's local x-axis direction)

SDy Spring stiffness in GCS Y-direction (Node's local y-axis direction)

SDz: Spring stiffness in GCS Z-direction (Node's local z-axis direction)

SRx: Rotational spring stiffness about GCS X-axis (Node's local x-axis)

SRy: Rotational spring stiffness about GCS Y-axis (Node's local y-axis)

SRz: Rotational spring stiffness about GCS Z-axis (Node's local z-axis)

Group: Boundary Group in which the entered boundary conditions are included
