Automatic Wall ID Generation

• Function

The wall combination numbers (Wall IDs) of wall elements input on a story are automatically reassigned. When line elements are expanded and converted into wall elements by the Extrude Elements function, the identically assigned wall IDs can be automatically modified.

• Call

From the Main Menu select Model > Building > Automatic Wall ID Generation.

Select Geometry > Building > Automatic Wall ID Generation in the Menu tab of the Tree Menu.

• Entry

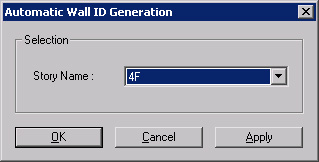

Automatic Wall ID Generation dialog box

Selection

Story Name
Select the story name for which the wall IDs are automatically assigned.

Note
Since the function for auto-assigning the wall IDs is used on the basis of a single story, it is more convenient to model and auto assign wall IDs for the lowest story and copy them to upper stories.
