Function

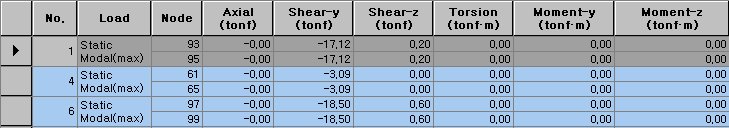

General link element forces and stresses of analysis results are tabulated in a Spread Sheet format.
Table Tool in midas offers a variety of powerful built-in functions. Refer to Usage of Table Tool for detail directions:
Call
From the Main Menu select Results > Result Tables > General Link
Select Result Tables > General Link in the Tables tab of the Tree Menu.
Usage
Upon executing the Displacements Table function, Records Activation Dialog prompts.
Note
Refer to Results Table
of "Usage of Table Tool"
for the usage of Records Activation Dialog.
Refer to Usage
of Table Tool and check the following data:
No.: General link element number
Load: Load case/combination
Node: Node number
Axial: Axial force in ECS x-direction
Shear - y: Shear force in ECS y- direction
Shear - z: Shear force in ECS z- direction
Torsion: Torsional moment about ECS x-axis
Moment - y: Bending moment about ECS y-axis
Moment - z: Bending moment about ECS z-axis
