A single Member can be assigned when the
member is consisted of a number of line elements (beam elements or truss
elements).
Call
From the Main
Menu select Design
> General Design Parameter > Member Assignment.
From the Menu
tab of the
Tree Menu select Design
> General Design Parameter > Member Assignment.

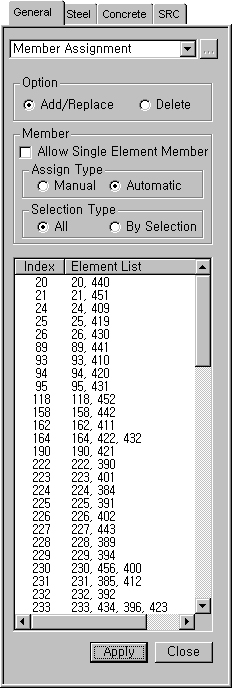

Entry
Select
the corresponding elements to be assigned as a member, and enter the following
Option
Add/Replace:
A new Member can be defined or an existing Member can be revised.
Delete:
Assigned members can be deleted. You may either select the Members to
be deleted from the model window or the Element List window.
Member
Allow
Single Element Member: Check on to permit a single element to be
assigned as a member.
Assign Type
Manual:
The User defines Members directly.
Automatic:
The program defines Members automatically.
Selection Type
All:
All is selected if all the elements are to be assigned Members. This becomes
activated if Automatic is selected in Assign Type.
By
Selection: A Member is assigned to selected elements.
: Selected elements
are assigned a Member.
: Input Dialog Bar is
closed.
Note
1 When a number of elements are assigned a
single Member, the Member number retains the smallest element number.
That element then becomes the representative element. All design parameters
for the Member must be input for the representative element.
Note
2 If the elements to be assigned a Member retain
different material and section properties, or the directions of the node
connections are different, a Member can not be assigned.
Note 3 The design parameters,
Effective Length Factor (K), Equivalent Moment correction Factor (Cm),
Moment Magnifier (B1/δb,B2/δs) and Limiting Slenderness Ratio
are taken from the representative element, and Unbraced Length (L,Lb)
is taken from each element.
Option.jpg)
: Selected elements
are assigned a Member..jpg)
: Input Dialog Bar is
closed.
