Define Short/Long term Load Case







This function assigns whether load cases are short-term or long term. In addition, short term load cases can be classified into X and Y direction.  Stress from long-term load cases is compared to the long term allowable stress in design while stress from long-term and short-term load cases is compared to the short term allowable stress.  The feature can be effectively used during the design as per the design code which requires allowable stress to vary with load combinations.



Note 1
This function is available only in Eurocode 2, 3 and Japanese Design Code (Steel: AIJ-ASD02, RC: AIJ-WSD99, SRC: AIJ-SRC01).







From the Main Menu select Design > General Design Parameter > Define Short/Long term Load Case



From the Menu tab of the Tree Menu select Design > General Design Parameter > Define Short/Long term Load Case

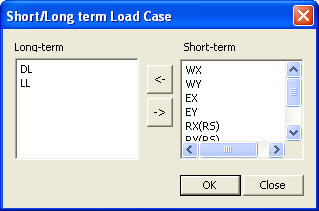

For Eurocode Design





Long-term



A list of Long-term  Load Cases





Short-term



A list of Short-term  Load Cases

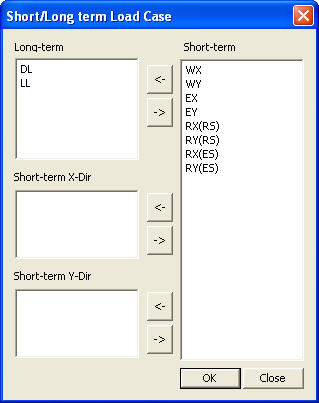

For Japanese  Design Code





Long-term



A list of Long-term  Load Cases





Short-term



A list of Short-term  Load Cases





Short-term X-Dir



A list of Short-term Load Cases in the X direction





Short-term Y-Dir



A list of Short-term Load Cases in the Y direction
