Serviceability Load Combination Type

Serviceability load combinations will be classified into Characteristic, Frequent, or Quasi-permanent.

Note
In order to use this function, Eurocode2 must be selected in Results>Combination, and it performs design based on the standards.

If Auto Generation is selected, it will classify load cases automatically. If not, user must classify them by himself.

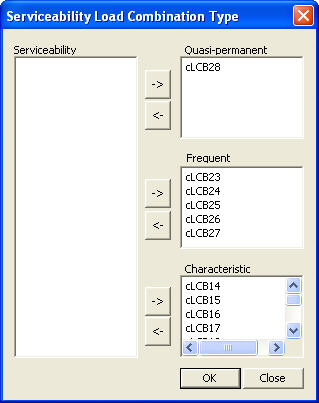

From the Main Menu select Design > Meshed Slab/Wall Design > Serviceability Load Combination Type

New for Gen 2010

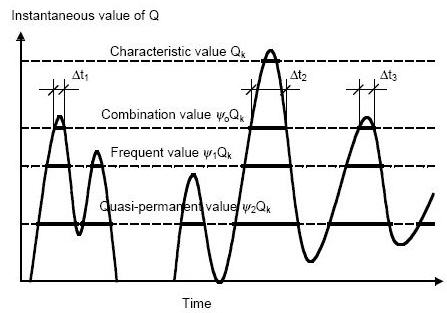

Load cases will be classified as shown in the figure below, and they will be automatically classified when using Auto-generation.

Please refer to [EN 1990 Basic of Structural Design] for detail information about classification method and computation.
