Limiting Slenderness Ratio Table
|
|
|
|
|
|
Display the limiting slenderness ratios arranged in a table in the order of element numbers.
Modify/Delete or Add New ratios while reviewing the entered data. |
|
|
|
|
|
|
|
From the Main Menu select Design > General Design Parameter > General Design Tables > Limiting Slenderness Ratio.
From the Tables tab of the Tree Menu select Design Tables > Steel Design > Limiting Slenderness Ratio. |
|
|
|
|
|

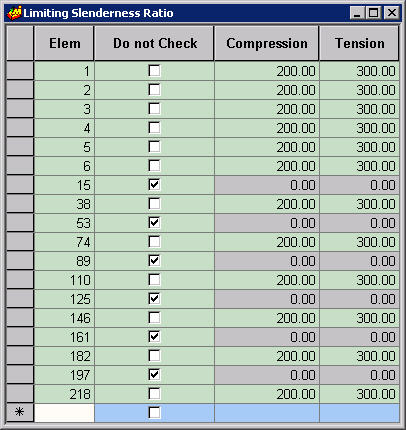

When the table shown is displayed, the user may select relevant items to Modify/Delete, or Add New data.
Limiting Slenderness Ratio Table
Elem: Element number
Do not Check: Option for not checking the limiting slenderness ratios (KL/r)
Compression: Limiting slenderness ratios for the members under axial compressions
Tension: Limiting slenderness ratios for the members under axial tension forces
|
|
|
