Story Disp/Vel/Accel







Generate time history graphs of displacement, velocity and acceleration for each story level, based on the time history analysis results.



This function is activated only when the Story Response of Time History Results is checked in Model > Building > Control Data.







From the Main Menu select Results > Time History Results > Story Graph > Story Displ/Vel/Accel.



Select Results > Story Graph > Story Displ/Vel/Accel in the Menu tab of the Tree Menu.

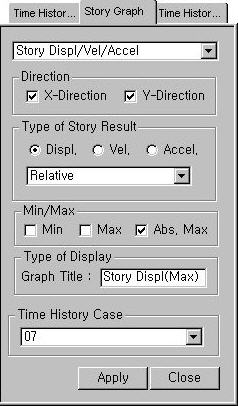

Generate displacement, velocity and acceleration at each story level for the time history analysis.



  Direction



Specify a direction of displacement, velocity or acceleration.



X-Direction



Y-Direction





  Type of Story Result



Specify a story result type.



Displ.: displacement



Note

Relative, Absolute, Story Drift, and Story Drift Ratio can be selected in the box below "Type of Story Result"

Vel.: velocity



Note

Relative, Absolute, and Story Drift can be selected in the box below "Type of Story Result"

Accel.: acceleration



Note

Relative, Absolute, and Story Drift can be selected in the box below "Type of Story Result"





     Min/Max



Min: Display the minimum displacement, velocity or acceleration for each story level.



Max: Display the maximum displacement, velocity or acceleration for each story level.



Abs. Max: Display the maximum absolute displacement, velocity or acceleration for each story level.





 Type of Display



Enter a title of the time history graph and a format of output for axes.



Graph Title: Title of time history graph





  Time History Case



Select a load case for which a time history graph will be produced.
