Design Criteria for Rebars

Enter the standard sizes of rebars used in the design of reinforcement for slab/wall elements.

From the Main Menu select  Design > Meshed Slab/Wall Design > Design Criteria of Rebar.

New for Gen 2012

The following dialog box is used to enter the data:

Design Criteria for Rebars Dialog

Basic Rebar for slab

Enter basic rebar data for slab:

Top-Dir.1:Enter rebar size and spacing for top slab in Dir.1

Bot-Dir.1:Enter rebar size and spacing for bottom slab in Dir.1

Top-Dir.2:Enter rebar size and spacing for top  slab in Dir.2

Bot-Dir.2:Enter rebar size and spacing for bottom  slab in Dir.2

Note: The basic rebar data as seen in the above dialog box is applied to all the slabs. If the user wants to apply different basic rebar data to different slabs, that can be done through Define Sub-Domain

For Slab Design

Enter the additional standard rebar sizes, the spacing of rebars and covers used in the slab design.

Rebar: Standard rebar sizes used for the slab design

Spacing: Spacing of rebars used for the slab design

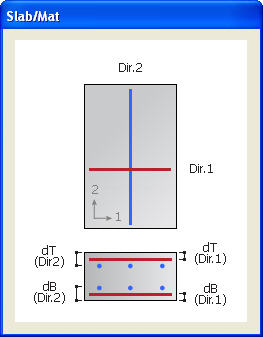

Concrete Face to Center of Rebar (dT, dB)

Dir. 1: Cover thickness of Angle 1 Rebar

Dir. 2: Cover thickness of Angle 2 Rebar

For Mat Design

Enter the standard rebar sizes, the spacing of rebars and covers used in the foundation mat design.

Rebar : Standard rebar sizes used for the foundation mat design

Spacing : Spacing of rebars used for the foundation mat design

Concrete Face to Center of Rebar (dT, dB)

Dir. 1: Cover thickness of Angle 1 Rebar

Dir. 2: Cover thickness of Angle 1 Rebar

For  Wall Design

Enter the standard sizes of vertical and horizontal rebars and the placement layout of vertical rebars for wall members.

Vertical Rebar: Standard sizes for vertical rebars used in wall design

Horizontal Rebar: Standard size for horizontal rebars used in wall design

Spacing: Spacings of rebars used for the wall design

Concrete Face to Center of Rebar (dw)

Distance between the center of the end vertical rebars and the end of the shear wall (cover thickness).

Note

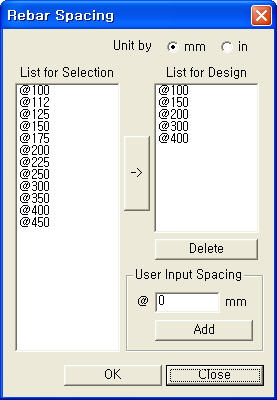

Spacing of rebars can be specified or deleted using .
