Slab/Wall Load Combinations
|
|
|
|
|
|
Select the load combinations for the slab/wall element design.
Only the load combinations that are specified as ‘Strength/Stress’ or ‘Serviceability' from Result>Combinations are displayed in the load combinations list. |
|
|
|
|
|
|
|
From the Main Menu select Design > Meshed Slab/Wall Design > Slab/Wall Load Combinations. |
|
|
|
|
|

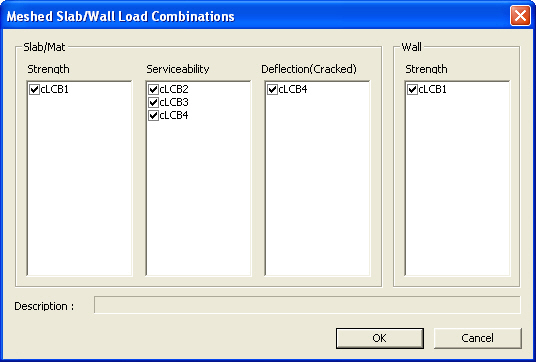

Slab/Wall Load Combinations dialog box
Select the load combinations to be applied to slab and mat design
Strength Only the load combinations for which 'Strength/Stress' is selected under the 'Active' column in the 'Concrete Design' tab of Result>Combinations, are displayed in the list.
Default: The load combinations that are composed of DL and LL only are automatically selected. (Temperature loads are excluded)
Serviceability Only the load combinations for which 'Serviceability' is selected under the 'Active' column in the 'Concrete Design' tab of Result>Combinations are displayed in the list.
Default: The load combinations that are composed of DL and LL only are automatically selected. (Temperature loads are excluded)
Deflection(Cracked) Load combinations for performing cracked section analysis and checking cracking deflections. Only the serviceability load combinations which are classified as "Quasi-permanent" are displayed in the list.
Default: The load combinations that are composed of DL and LL only are automatically selected. (Temperature loads are excluded)
The load combinations to be applied to wall design
Strength Only the load combinations for which 'Strength/Stress' is selected under the 'Active' column in the 'Concrete Design' tab of Result>Combinations are displayed in the list.
Default: All the load combinations are automatically selected.
The description of the load combination, specified in Results>Combinations, is displayed.
|
|
|
New for Gen 2010
Slab/Mat
