Design Code

Enter the design code applicable for strength verification of SRC (Steel-Reinforced Concrete composite) members.

From the Main Menu select Design > SRC Design Parameter > Design Code.

From the Menu tab of the Tree Menu select Design > SRC Design Parameter > Design Code.

The following dialog box is used to enter the data:

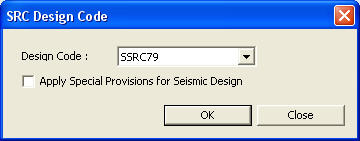

SRC Design Code dialog box

Design Code

SRC design code (Default = SSRC79, refer to Note 1)

Apply Special Provisions for Seismic Design

Not available

 : Enter the selection and close the dialog box.

 : Do not enter the selection and close the dialog box.

Note 1
If the user does not specify the design code, the allowable stress design (A Specification for the Design of Steel-Concrete Column, 1979) of the American SSRC (Structural Stability Research Council) will be used.

The available SRC design codes are as follows :

- The allowable stress design of the American SSRC (Structural Stability Research Council) (SSRC79)

(available upon request)

- Taiwan SRC Design Specifications and Commentary of Buildings (TWN-SRC100)

- Taiwanese SRC Design Specifications and Commentary of Buildings (TWN-SRC92)

- China Standard (JGJ138-01)

- Structure Design Code of the Architectural Institutes of Japan(AIJ-SRC01)

- Structure Design Code of the Architectural Institutes of Korea (AIK-SRC2K)

Note 2
The allowable stress design of the American SSRC (SSRC79) and the SRC Structure Design Specifications of the Architectural Institute of Korea (AIK-SRC2K) can be applied for SRC composite column members.
