Define Label Direction

Define the directions of the supports for a display purpose on screen.

From the Main Menu select Boundary > Etc. > Define Label Dir.

Options

Add/Replace: Enter or replace a local coordinate system for selected nodes

Delete: Delete previously entered node's local coordinate system for selected nodes

Label Direction

Define the direction of the label of the support.

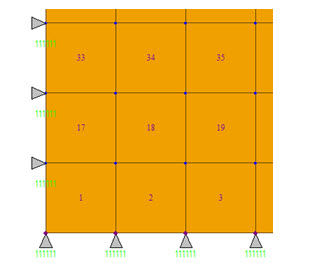

For example, a set-up such that local z(+) is defined for the bottom supports and local x(+) is defined for the left supports will display on screen as below.

Note

View > Display > Boundary Tab, the display of the directions of supports can be controlled by checking on and off.
