Element Rotation

                   Supporting to check limitation of inelastic rotation for 1D element and Wall, and to check the damage status from nonlinear

                   deformation of the element by comparing it with the allowable deformation.

From the Main Menu select Results > Tables > Result Tables > Inelastic Hinge > Element Rotation

Allowable Deformation Calculation Method

- Do not Consider : Provide Only analysis result for inelastic rotation

- Country code : Provide the allowable values as per EC8(2004) and check results

- User Input : enter the allowable values by user  and check results with this value

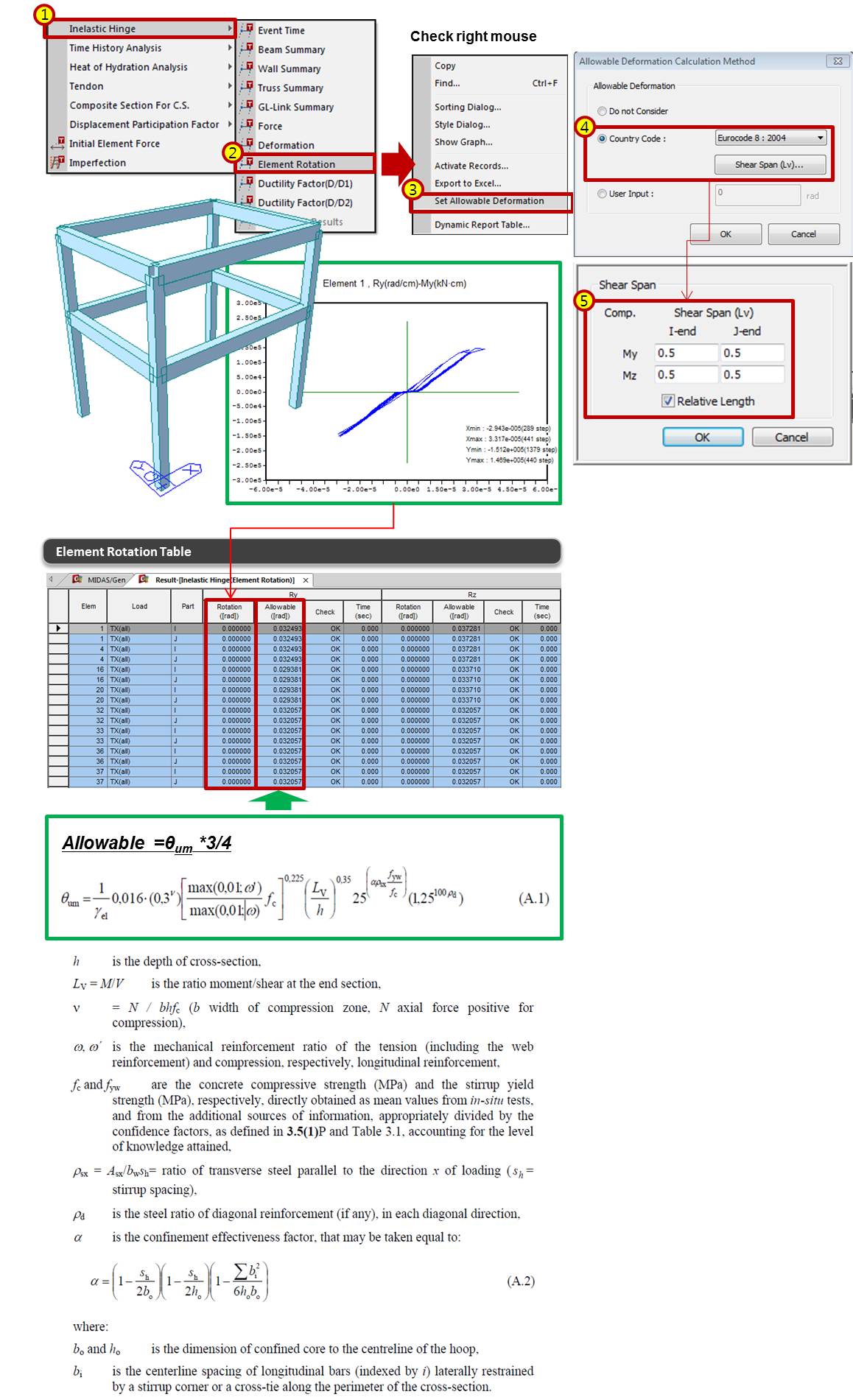

* The procedure for checking is as follows.
