Section Data





Define control parameters of deflection for serviceability check. The function is only activated for Eurocode.







From the Main Menu select Design > Design > Cold Formed steel Design > Serviceability Parameters











Select a section from the list to modify the data.



Section List



Display the section list of cold formed steel entered during the creation of the analysis model. Select the section to be modified with the mouse.





Section Dimension



Display section dimension which is selected on list.





Metallic  Coating



Enter the coating thickness. This value is taken into account in the tw (thickness) of the section for the strength check.





Type of Forming



Select type of forming option for "k" determination.

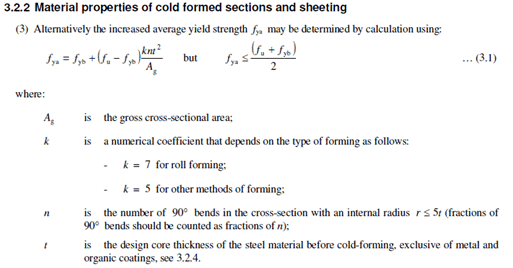

Note 1 [EN1993-1-3 : 2006]
