Display the serviceability parameters applied to steel members in a table.

Modify/Delete existing or Add New data while reviewing the entered data.

From the Main Menu select Design > Cold Formed Steel Design >  Cold Formed Steel Design Tables > Serviceability Parameters

Select Design Tables > Steel Design > Serviceability Parameters in the Tables tab of the Tree Menu

When the table shown below is displayed, the user may select relevant items to Modify/Delete, or Add New data.

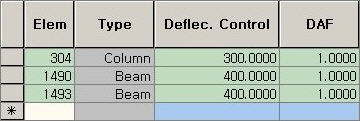

[Serviceability Parameters Table]

Elem: Element number

Type: Column or Beam

Deflec. Control: Limiting deflection (1/L)

DAF: Deflection Amplification Factor
