Beam End Offsets Table

Enter or modify Rigid End Offset Distance data or Joint Eccentricity data in GCS or the element's local coordinate system of beam elements in a spreadsheet format Table.

Table Tool in midas offers a variety of powerful built-in functions. Refer to the following items for detail directions:


Usage of Table Tool

Terminology

Familiarize with Usage

Basic directions (Cell motion, selection, size control, etc.)

Data manipulation (Add, delete, modify data, etc.)

Copy/Paste data using clipboard

Supplementary Table functions

Table Sorting

Table format setting

Auto-fit column width

Graph printing

Supplementary functions by Table types

Node/Element Table

Results Table

From the Main Menu select Boundary > Tables > Boundary Tables > Beam End Offset Table.

(Refer to "Beam End Offsets")

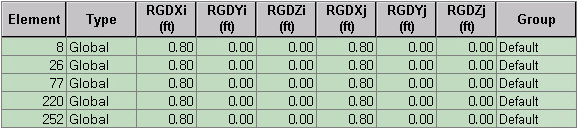

Refer to Usage of Table Tool and enter or modify the following data:

Element: Element number

Type: Define a reference coordinate system (Global, Element)

In case of Type = "Global"

RGDXi: Vector component of the end offset distance at N1 end in GCS X-direction

RGDYi: Vector component of the end offset distance at N1 end in GCS Y-direction

RGDZi: Vector component of the end offset distance at N1 end in GCS Z-direction

RGDXj: Vector component of the end offset distance at N2 end in GCS X-direction

RGDYj: Vector component of the end offset distance at N2 end in GCS Y-direction

RGDZj: Vector component of the end offset distance at N2 end in GCS Z-direction

For Type = "Element"

RGDXi: End offset distance in the element's local (+) x-direction at N1 end

RGDXj: End offset distance in the element's local (-) x-direction at N2 end

Group: Boundary Group in which the entered boundary conditions are included
