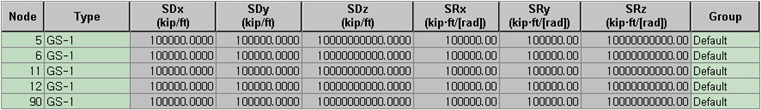

General Spring Supports Table

Enter or modify general nodal spring stiffness data in a spreadsheet format Table.

Table Tool in midas offers a variety of powerful built-in functions. Refer to the following items for detail directions:


Usage of Table Tool

Terminology

Familiarize with Usage

Basic directions (Cell motion, selection, size control, etc.)

Data manipulation (Add, delete, modify data, etc.)

Copy/Paste data using clipboard

Supplementary Table functions

Table Sorting

Table format setting

Auto-fit column width

Graph printing

Supplementary functions by Table types

Node/Element Table

Results Table

From the Main Menu select Boundary > Tables > Boundary Tables > General Spring Supports.

(Refer to "General Spring Supports")

Refer to Usage of Table Tool and enter or modify the following data:

Node: Node number

Type: General nodal spring stiffness type

SDx: Spring stiffness in the node's local x-direction or GCS x-direction

SDy: Spring stiffness in the node's local y-direction or GCS y-direction

SDz: Spring stiffness in the node's local z-direction or GCS z-direction

SRx: Rotational spring stiffness about x-axis of the node's local coordinate system or GCS

SRy: Rotational spring stiffness about y-axis of the node's local coordinate system or GCS

SRz: Rotational spring stiffness about z-axis of the node's local coordinate system or GCS

Group: Boundary Group in which the entered boundary conditions are included
