Node Local Axis Table

Enter or modify node's local coordinate systems for specific nodes in a spreadsheet format Table.

Table Tool in midas offers a variety of powerful built-in functions. Refer to the following items for detail directions:


Usage of Table Tool

Terminology

Familiarize with Usage

Basic directions (Cell motion, selection, size control, etc.)

Data manipulation (Add, delete, modify data, etc.)

Copy/Paste data using clipboard

Supplementary Table functions

Table Sorting

Table format setting

Auto-fit column width

Graph printing

Supplementary functions by Table types

Node/Element Table

Results Table

From the Main Menu select Boundary > Tables > Boundary Tables > Node local Axis.

 (Refer to "Node Local Axis")

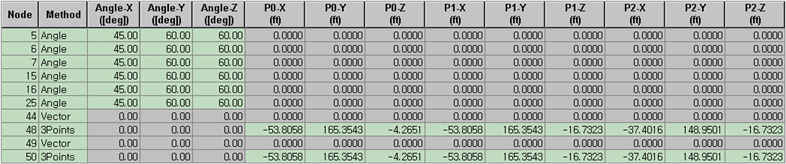

Refer to Usage of Table Tool and enter or modify the following data:

Node: Node number

Method: Methods of defining the node's local coordinate systems

In case of Angle

Angle - X: Angle of rotation about GCS X-axis

Angle - Y: Angle of rotation about y'-axis rotated about X-axis

Angle - Z: Angle of rotation about z"-axis rotated about X- and y'-axes

In case of 3 Points

P0-X, P0-Y, P0-Z: Coordinates of the origin, P0 in each GCS direction

P1-X, P1-Y, P1-Z: Coordinates of an arbitrary node on the node's local x-axis, P1 in each GCS direction

P2-X, P2-Y, P2-Z: Coordinates of a node moved from P1, parallel to the node's local y-axis, P2 in each GCS direction

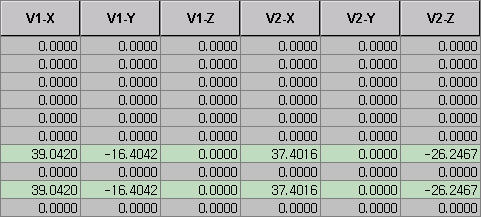

In case of Vector

V1-X: GCS X-component of vector V1

V1-Y: GCS Y-component of vector V1

V1-Z: GCS Z-component of vector V1

V2-X: GCS X-component of vector V2

V2-Y: GCS Y-component of vector V2

V2-Z: GCS Z-component of vector V2
