Design Code







Use this function to select the design code to apply for the strength verification of steel members and specify the lateral bracing condition of the structure's horizontal members (beams and girders).







From the Main Menu select Design > Design > Steel Design > Design Code.













Design Code



Steel design code (refer to Note 1)





All Beams/Girders are Laterally Braced



Specify the lateral brace condition to the horizontal members (beams and girders) of the structure to be designed (refer to Note 2).





Apply Special Provisions for Seismic Design



Not available



 : Enter the selection and close the dialog box.



 : Do not enter the data or the selection and close the dialog box.





Note 1 Available steel design codes

Note 2
When the top compression flanges of the steel girders or beams are connected to the concrete floor by welded metal decks and/or shear connectors, it is assumed that all the members are laterally braced. If this item is selected, the Laterally Unbraced Length (Lb) field is deactivated in the "Unbraced Length (L,Lb)" Dialog Bar and Lb = 0 is applied to all the members.
(Refer to "Unbraced Length (L,Lb)")

Note 3

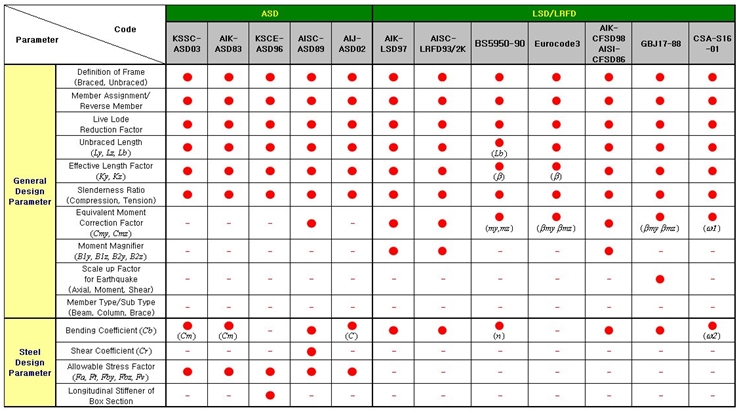

Applied steel design parameter by design codes
