Water Level

Specify the Ground Water Level Boundary Condition.

Applicable Modules:

From the Main Menu, select Loads | Boundaries > Functions > Water Level

(Limit Equilibrium Method) From the Main Menu, select Limit Equilibrium Method > Functions > Water Level

(1D Consolidation) From the Main Menu, select 1D Consolidation > Functions > Water Level

From the Command Line, type 'WaterLevel' or 'WL'

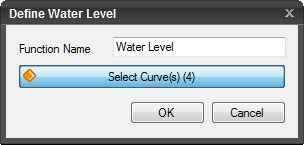

Function Name

Name of the Ground Water Level Boundary Condition.

Select Curve(s)

Select curves which will define the Ground Water Level Function.

After creating the Ground Water Level Function, the dialog box will close upon clicking.

Click the ESC key to close the dialog box.
