Construction Stages

Define Construction Stages.

Applicable Modules:

From the Main Menu, select Analysis | Design > Construction Stages > Construction Stages

(Seepage Module)  From the Main Menu, select Boundaries | Analysis > Construction Stages > Construction Stages

From the Command Line, type 'DefineStage' or 'CS'

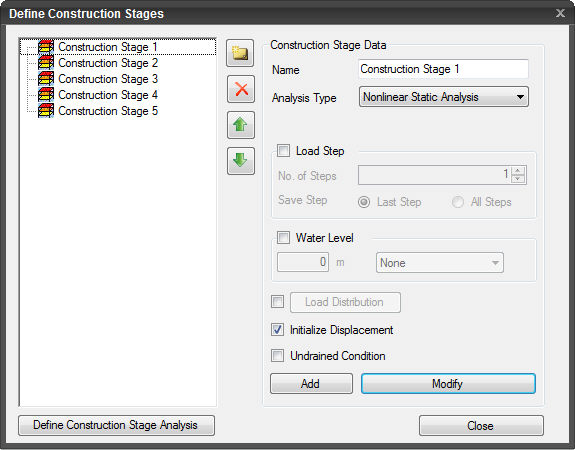

Construction Stage Data

Name

Name of the Construction Stage data.

Analysis Type

Load Step

Check on the Load Step when loading needs to be applied in a number of steps.

No. of Steps

Save Step

Last Step

If Last Step is selected, only the last load step results can be used in the Post-processing.

All Steps

If All Steps is selected results for all the load steps can be used in the Post-processing.

Water Level

Enter the ground water level in the global coordinate system pertaining to the current Construction Stage. Also, the function defined in Loads and Boundaries may be selected.

Load Distribution

Check on the option and click the button.

Subsequent Stage

From the current stage being 0, enter the subsequent stage numbers in which the Distribution Factors will be applied.

Distribution Factor

Enter the Distribution Factors to be applied at each stage. For example, if the Distribution Factors for the current stage is 0.4 and the factors for the subsequent 2 stages are 0.3 each, then the Subsequent Stage are 0, 1 and 2, which correspond to the factors 0.4, 0.3 and 0.3 respectively.

Total

Total displays the sum of the distribution factors. The Total needs to be 1. After entering the values, press the Enter Key to complete the input.

Initialize Displacement

From the analysis results of the current Construction Stage, only the stress results are used without using the displacement results. This is used for calculating the initial stress in the original ground condition.

Undrained Condition

Check on to consider Undrained Analysis in the current Construction Stage in which case, the undrained properties of the material need to be specified.

Define Construction Stage Analysis Model

Click to invoke the dialog box.

Click to add the new Construction Stage.

Click to modify the selected Construction Stage.

Click the ESC key to close the dialog box.
