Deformed Shape

Specify detail items related to the graphic processing of deformed shape. This is not applicable if the graphic results are 'Undeformed Shape'.

Applicable Modules:

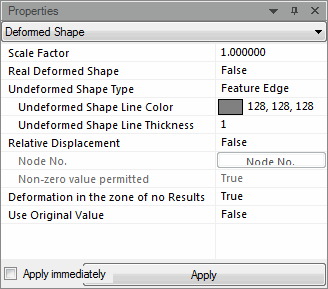

From the Property Window, select Deformed Shape

Scale Factor

Scale factor used to show the deformed shape in the result data (Applicable when Real Deformed Shape is 'True').

Real Deformed Shape

True

Unaltered true analysis result values are produced.

False

Analysis results are produced in an adjusted scale to readily assess the deformed shape.

Undeformed Shape Type

Specify the type of undeformed shape to be displayed in the model results. ('Feature Edge' and  'Mesh Edge')

 Undeformed Shape Line Color

Specify the line color of the undeformed shape.

 Undeformed Shape Line Thickness

Specify the line thickness of the undeformed shape.

Relative Displacement

True

Displacement results are expressed relative to the displacement at the selected node. 'Select Node' from the model data.

False

The results are displayed in absolute displacement.

Apply Immediately

The changed items in the detail items are immediately applied to the result data.

Apply

The changed items in the detail items are applied to the result data.
