Elastic Link

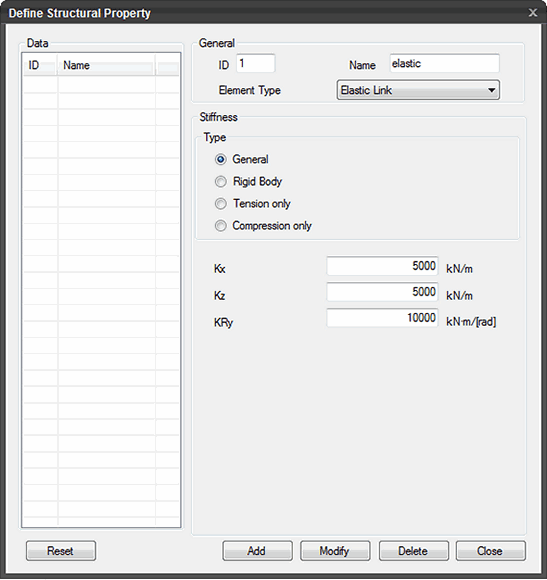

Define Elastic Links for an Analysis model.

Applicable Modules:

Ground image65.gif

Slope image68.gif

Soft Ground image69.gif

Foundation image236.gif

Seepage image70.gif

Dynamic image71.gif










Stiffness

Type

General

General elastic link element having 3 spring constants directly input by the user.

Rigid Body

Rigid link element.

Tension only

Tension-only element having the spring constant only in the x axis, resisting only tension.

Compression only

Compression-only element having the spring constant only in the x axis, resisting only compression.



Kx

Spring stiffness in the x-axis direction.

Kz

Spring stiffness in the z-axis direction.

KRy

Rotational spring stiffness about the y-axis.
