Stiffness Calculator





Calculate stiffness of composite section easily in 1D element.

Applicable Modules:

Ground image65.gif

Slope image68.gif

Soft Ground image69.gif

Foundation image236.gif

Seepage image70.gif

Dynamic image71.gif

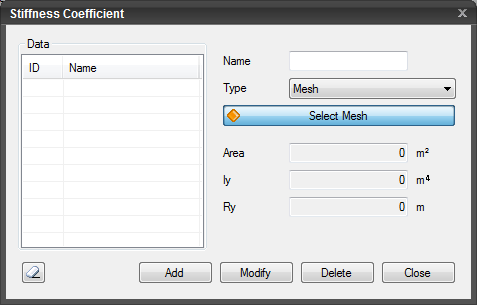

From the Main Menu, select Model > Property > Stiffness Calculator  2016-01-13_13-58-38.png

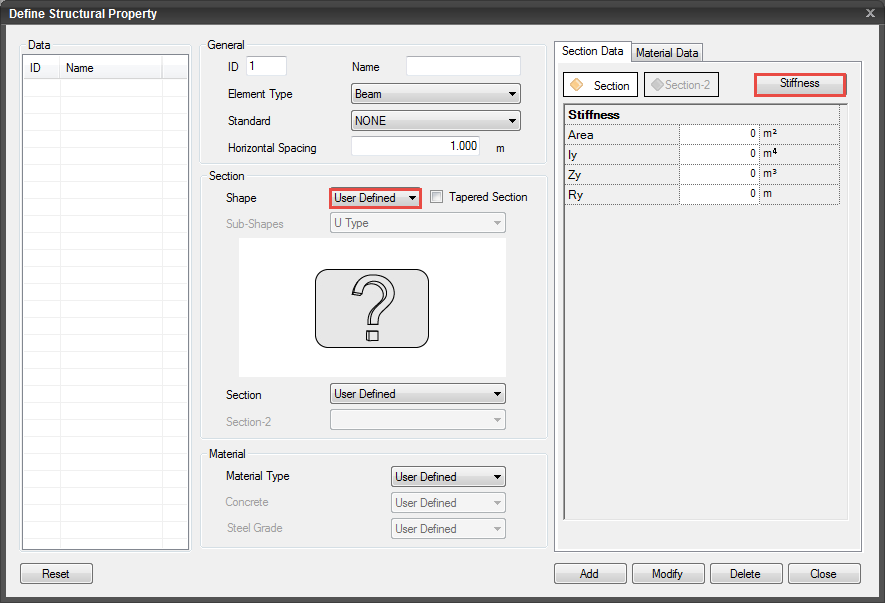

After registering to calculate stiffness selecting 2D elements/mesh assigned each other materials, stiffness of any section is invoked by 'Stiffness' ( from Structural Property > Shape : User Defined )
