Story Shear/Overturning Mom.(by Step)







Generate the story shear force and overturning moment graphs relative to the time step based time history analysis results.

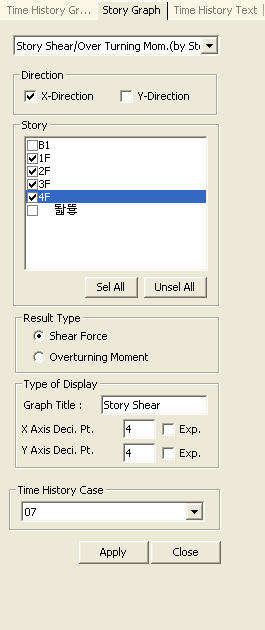

From the Main Menu select Results > Time History Results > Story Graph >Story Shear/Overturning Mom.(by Step).



Select Results > Story Graph >Story Shear/Overturning Mom.(by Step)  in the Menu tab of the Tree Menu.












Generate the story shear forces and overturning moments for each analysis step of time history analysis.



   0-Check.jpg Direction



Specify a direction for the story shear forces or overturning moments.



X-Direction



Y-Direction





0-Check.jpg Story



Select the stories for which the story shear forces and overturning moments will be generated.



0-Sel_All.jpg:Select all stories



0-Unsel_All.jpg: Unselect all the selected stories





  0-Check.jpg Result Type



Shear Force



Overturning Moment





 0-Check.jpgType of Display



Enter a title of the time history graph and a format of output for axes.



Graph Title: Title of time history graph



X-Axis Deci. Pt. (Exp): Decimal points and whether to express in exponents for X-axis of the graph



Y-Axis Deci. Pt. (Exp): Decimal points and whether to express in exponents for Y-axis of the graph





 0-Check.jpg Time History Case



Select a load case for which a time history graph will be produced.
