Model Data Text Output







Arrange and produce the model input data such as loading conditions, material properties, section properties, etc for output calculations.







From the Main Menu select File > Model Data Text Output

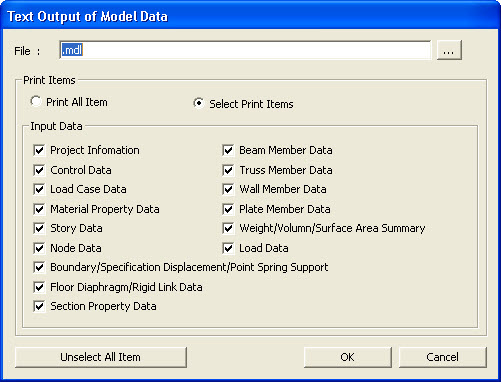

Text Output of Model Data dialog box

00-Check.jpg File



Specify the path and filename under which Text Output is saved. Simply click the 12-MDTO-2.jpg button to specify the path and filename.



00-Check.jpg Print Items



Select the input data to produce.



Print All Item: Produce all the items listed in the Input Data.



Select Print Items: The user can select the items to display.





00-Check.jpg Input Data



Note
Shear modulus of elasticity is calculated and displayed based on the Poisson’s ratios in the Property Data of Model Data Text Output.
