Shrink Elements







Display the modeled elements shrunk by a fixed ratio at nodes. Use 00-Display_Option.jpg Display Option to adjust the shrink ratio.



The function is very useful when verifying the connection conditions of nodes and elements.









From the Main Menu select View > Shrink Elements.



Click 09-SE-1.jpg Shrink in the Icon Menu.



Shortcut key: [Ctrl]+K



The model below is a display created by Shrink, Perspective and Hidden. Use 00-Display_Option.jpg Display Option to adjust the Factor, Scale and other pertinent controls.

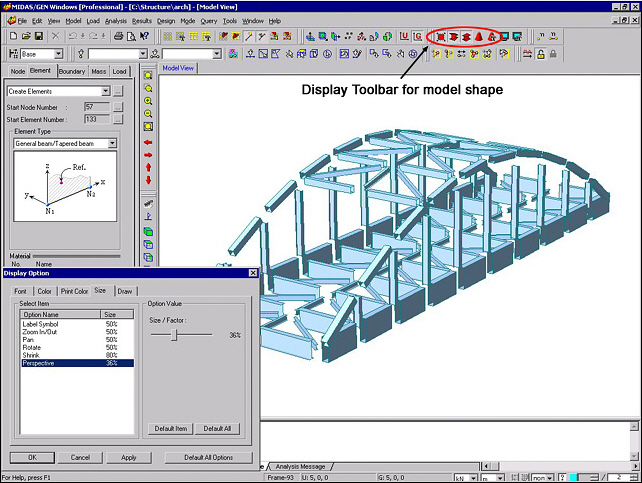

<Fig. 1> Arch Bridge created using Shrink, Perspective & Hidden
