Project Nodes







Move or copy nodes by projection on a particular line or surface.







From the Main Menu select Model > Nodes > Project.



Select Geometry > Nodes > Project in the Menu tab of the Tree Menu.



Click 05-P-1.jpg Project Nodes in the Icon Menu.



Shortcut key: [Ctrl]+[Alt]+5

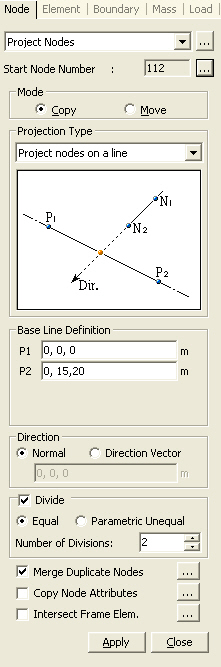

Click 00-Point.jpg to the right of Project Nodes: Display the Node Table

00-Check.jpg Start Node Number



Enter a starting node number for the newly created nodes. This number is auto-set to the largest node number in use +1. To modify this item, click 00-Point.jpg and select an option to specify a desired number.



00-Check.jpg Mode



Copy: To copy nodes



Move: To move nodes



00-Check.jpg Projection Type



Select the geometric shape of a Projection Base onto which nodes are projected.



The types of projection base are as follows:



Project nodes on a line



Project nodes on a plane



Project nodes on a cylinder



Project nodes on a cone



Project nodes on a sphere



Project nodes on an ellipsoid



Project nodes on an element



00-Check.jpg Base Line Definition



Enter the data necessary to define a projection base as follows:



All the data can be directly typed in on the keyboard. Alternatively, click the relevant entry fields and the nodes (related data) defining the base in the working window.





Project nodes on a line

00-mouse.jpg P1: Coordinates of a point located on the Base Line



00-mouse.jpg P2: Coordinates of another point located on the Base Line





Project nodes on a plane

00-mouse.jpg P1: Coordinates of a point located on the Base Plane



00-mouse.jpg P2: Coordinates of another point located on the Base Plane



00-mouse.jpg P3: Coordinates of a 3rd point located on the Base Plane





Project nodes on a cylinder

00-mouse.jpg P1: Coordinates of a point located on the central axis of the Base Cylinder



00-mouse.jpg P2: Coordinates of another point located on the central axis of the Base Cylinder



00-mouse.jpg Radius: Radius of the Base Cylinder





Project nodes on a cone



00-mouse.jpg P1: Coordinates of a point located on the central axis of the Base Cone



00-mouse.jpg P2: Coordinates of another point located on the central axis of the Base Cone



00-mouse.jpg Radius 1: Radius of the Base Cylinder at position P1



00-mouse.jpg Radius 2: Radius of the Base Cylinder at position P2







Project nodes on a sphere

00-mouse.jpg Origin: Coordinates of the center of the Base Sphere



00-mouse.jpg Radius: Radius of the Base Sphere





Project nodes on an ellipsoid

00-mouse.jpg P1: Coordinates of the center of the Ellipsoid's bottom surface



00-mouse.jpg P2: Coordinates of the top of the Base Ellipsoid



00-mouse.jpg Radius: Radius of the circle at the bottom surface of the Base Ellipsoid





Project nodes on an ellipsoid


00-mouse.jpg P1: Coordinates of a point on the Parabolic Plane



00-mouse.jpg P2: Coordinates of a second point on the Parabolic Plane



00-mouse.jpg P3: Coordinates of a third point on the Parabolic Plane





Project nodes on an element

00-mouse.jpg Element Number: Plate element number (Plane stress element, plate element, etc.)



00-Check.jpg Direction



Assign the projection direction for the line or surface of the defined projection base.



Normal: Projection direction normal to the line or surface of the projection base



00-mouse.jpg Direction Vector: Projection in an arbitrary direction. Enter each of the x, y, z vector components in the projection direction.



00-Check.jpg Divide



Create additional elements in between the existing nodes and projected nodes along the lines of projection at either equal or unequal spacings.



Equal: Equal spacing



Number of Divisions: Number of equal spacings



Parametric Unequal: Unequal spacings defined in terms of distance ratios.



Ratio: Locations of division along the total projection length expressed in terms of distance ratios. (ex: 0.4, 0.6, 0.9)



00-Check.jpg Merge Duplicate Nodes



Merge overlapping nodes to single nodes if new nodes coincide with existing nodes. Click 00-Point.jpg to modify the Merging Tolerance.



00-Check.jpg Copy Node Attributes



Select the option whether to copy the attributes (nodal boundary conditions, nodal concentrated loads, etc.) to the nodes being copied. Click 00-Point.jpg to assign desired attributes selectively.



00-Check.jpg Intersect Frame Elem



If line elements exist at the locations to which nodes are project-copied or moved, divide the line elements at the corresponding nodes. Click 00-Point.jpg to control the tolerance for the intersecting condition of a node and a line element.
