Scale Nodes







Magnify or reduce the distances between nodes by a given ratio in each axis direction.







From the Main Menu select Model > Nodes > Scale.



Select Geometry > Nodes > Scale in the Menu tab of the Tree Menu.



Click 09-S-1.jpg Scale Nodes in the Icon Menu.

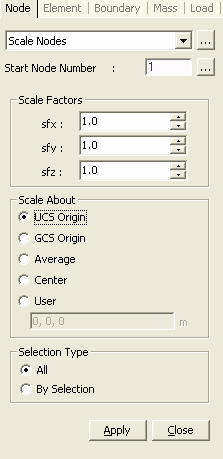

Click 00-Point.jpg to the right of Scale Nodes : Display the Node Table



00-Check.jpg Start Node Number



Not applicable for this command.



00-Check.jpg Scale Factors



Enter the scale factors for each direction.



sfx: Scale factor for the x-direction

sfy:Scale factor for the y-direction

sfz: Scale factor for the z-direction



00-Check.jpg Scale About



Assign a reference point of magnification or reduction.



UCS Origin: UCS origin point



GCS Origin: GCS origin point



Average: Average of the coordinates of the relevant nodes in each direction



Center: Arithmetic mean of the maximum and minimum coordinates among the targeted nodes



00-mouse.jpg User: Enter the coordinates of a reference point



00-Check.jpg Selection Type



All: Apply to all the entered nodes



By Selection: Apply only to the selected nodes
