Create Converted Line Elements







Generate line elements by converting the edges of a planar element into line elements.







From the Main Menu select Model > Elements > Create Converted Line Elements.



Select Geometry > Elements > Create Converted Line Elements in the Menu tab of the Tree Menu.



Click 16_CCLE_i.jpg Create Converted Line Elements in the Icon Menu.










Click 00-Point.jpg to the right of Create Converted Line Elements: Display the Element Table.

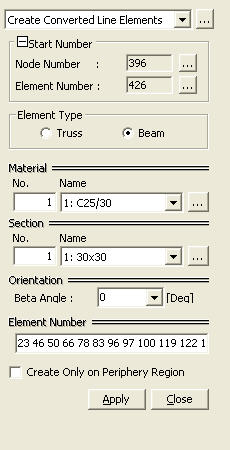

00-Check.jpg Start Node Number



Assign a number to the new starting node created together with new elements in the Model Window. This number is auto-set to the largest node number in use +1. To modify this item, click 00-Point.jpg and select an option to specify a desired number.



00-Check.jpg Start Element Number



Assign a new starting element number. This number is auto-set to the largest element number in use +1. To modify this item, click 00-Point.jpg and select an option to specify a desired number.



 00-Check.jpg Element Type



 Select the type of line element to be generated.



 00-Check.jpg Material / Section



Select a material/section property number, or select a material property name provided that the material property data have been already defined.



No. : Type in a number on the keyboard or use the mouse to enter the number



Name : Select a material/section property name



Click 00-Point.jpg to add, inquire, modify or delete material/section property data.

Material/Section properties can be entered either before or after creating elements.



00-Check.jpg Orientation



Beta Angle : Enter a Beta Angle to assign the sectional orientation of the line elements.



00-Check.jpg Element Number



Type in the element numbers or click the elements in the Model Window with the mouse.



00-Check.jpg Create Only on Periphery Region



If this option is selected, elements are generated only on the periphery of the region selected by the user
