Merge Elements

Merge more than 1 consecutive line elements into one line element.

From the Main Menu select Model > Elements > Merge.

Select Geometry > Elements > Merge in the Menu tab of the Tree Menu.

Click Merge Elements in the Icon Menu.

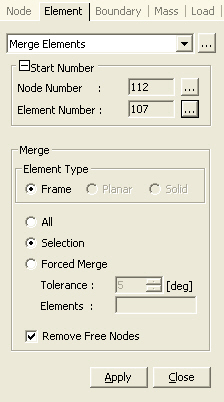

Click to the right of Merge Elements: Display the Element Table.

Start Node Number

Not applicable for this command

Start Element Number

Not applicable for this command

Merge

Element Type: Select the type of elements to be merged.

Frame: Line Element (Truss, Beam ... etc.)

Note
'Merge Elements' operates only for line elements.

All

Merge all the line elements included in the model.

Selection

Merge only selected line elements.

Forced Merge

Two unaligned linear elements sharing a common node can be forcibly merged into a single element.

Tolerance: Angular tolerance for element selection criterion (180° default for no restriction)

Element: Element numbers for two linear elements to be merged.

Note

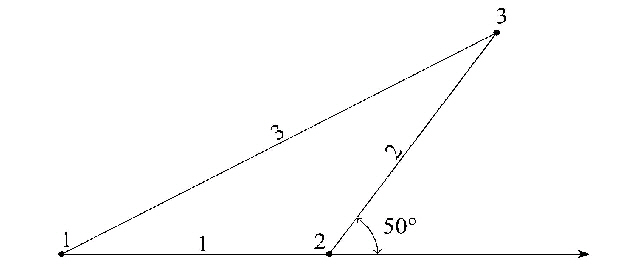

Diagram below illustrates the operation of forcibly merging elements 1&2 into element 3. Enter the Tolerance greater than 50° (180° default) and '1, 2' in Elements entry field.

Remove Free Nodes

Remove all the free nodes without attributes and unconnected to elements after merging elements.

Note

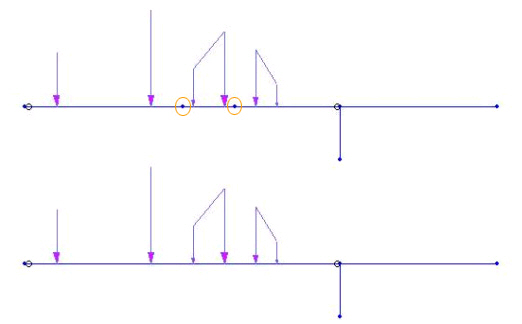

The Merge Elements function merges two continuous line elements lying on a straight line unless other elements intersect with the connection point of the two line elements. Elements with different attributes (material property, section number, etc.) do not merge. Loads and boundary conditions remain unchanged even after merging.
