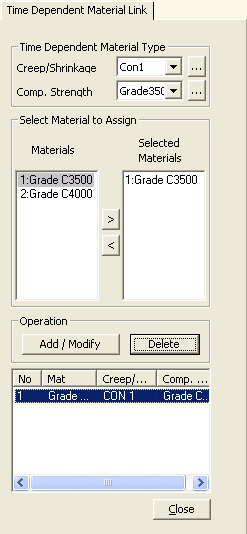

Time Dependent Material Link

The time dependent material properties defined in "Time Dependent Material (Creep/Shrinkage)" are related to the conventional material data already entered. The properties entered here are applied to Construction Stage analysis and Heat of Hydration analysis but not to other analyses.

From the Main Menu select Model > Properties > Time Dependent Material Link.

Select Geometry > Properties > Time Dependent Material Link in the Menu tab of the Tree Menu.

Click Time Dependent Material Link in the Property Tool Bar.

Time Dependent Material Type

Select appropriate Creep/Shrinkage and/or Comp. Strength types.

Select Materials to Assign

Among the material data registered in the Materials list, select relevant material data to register in Selected Materials, which will be assigned to the corresponding time history properties.

Operation

Select a material that has been defined with time history property in Time Dependent Material (Creep/Shrinkage).

Assign the time history material data selected from Material Type to the material data in the Selected Materials list, or modify the Material Type.

Delete the selected material data in the table containing the linked properties at the bottom of the dialog box.
