Change Boundary Group







Boundary conditions of a predefined Boundary Group are copied or moved to another Boundary Group or deleted. When boundary conditions for each construction stage are created for a construction stage analysis, copying or modifying the previously defined boundary groups may prove to be more convenient.







From the Main Menu select Model > Group > Change Boundary Group



Select Geometry > Group > Change Boundary Group in the Menu tab of the Tree Menu.








00-Check.jpg Options

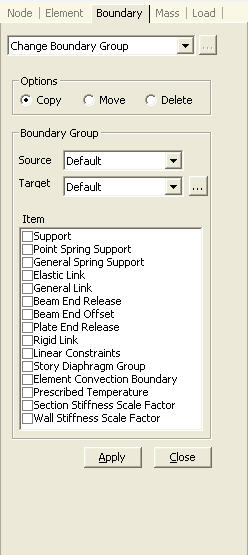

Copy: copy the boundary conditions included in Source Group to Target Group



Move: move the boundary conditions included in Source Group to Target Group



Delete: delete the boundary conditions included in Source Group





00-Check.jpg Boundary Group



Source: original group



Target: destination group (inactivated when Delete is selected)



00-Point.jpg: click to prompt the Define Boundary Group dialog box to add or modify groups.



Item: select the types of boundary conditions to be copied, moved or deleted.
