Batch Conversion from MVLTRC to Static Load (available upon request)





A number of loading conditions of different moving load locations are converted into static loadings and produced as model files of the MGT type. This is an extremely useful feature when a number of loading conditions need to be converted. Conversion is carried out by loading locations, result types, etc. all at once.

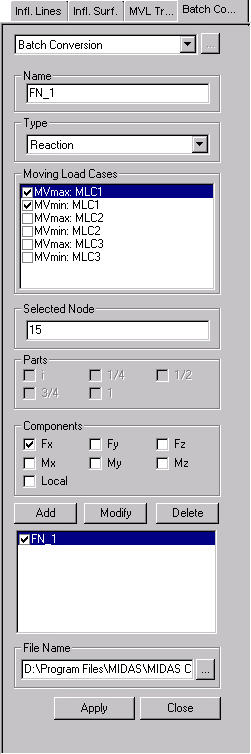

From the Main Menu select Results > Batch Conversion from MVLTRC to Static Load.








0-Check.jpg Name



Enter the name of the batch conversion.





0-Check.jpg Type



Select a result type among Reaction, Displacement, Truss Force/Moment, Beam Force/Moment, Plate Force/Moment and Beam Stresses.





0-Check.jpg Moving Load Cases



Select desired moving load cases.





0-Check.jpg Selected Node, Selected Element



Enter the node numbers where reaction or displacement results are required.


Enter the element numbers where internal force or stress results are required.





0-Check.jpg Parts



Assign the desired positions of elements for producing results.



0-Check.jpg Components



Assign the result components desired for producing results. Depending on the Type selected (Reaction, Displacement, Truss Force/Moment, Beam Force/Moment, Plate Force/Moment & Beam Stresses) components are automatically altered.





0-Add.jpg: Select to create a new batch conversion function.



0-Modify.jpg: Modify a previously created batch conversion function.



0-Delete.jpg: Delete a previously created batch conversion function.





0-Check.jpg File Name



Enter the file path and name of the MGT file to be created.
