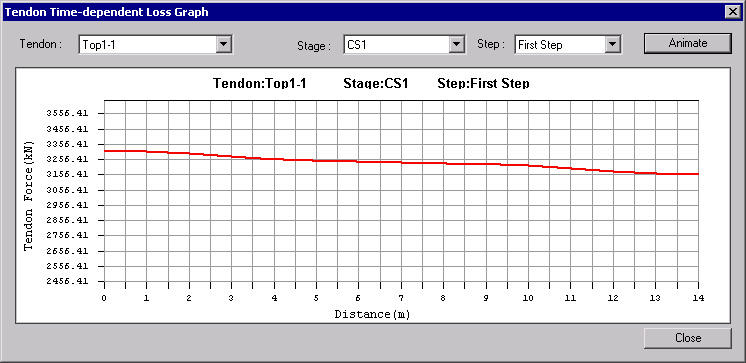

Tendon Time-dependent Loss Graph

Effective prestressing forces in tendons may be produced in the form of graphs or animations for each construction stag/step.

Instantaneous Prestress Loss and Time-dependent Prestress Loss may be reviewed.

From the Main Menu select Results > Tendon Time-dependent Loss Graph.

Select Results > Tendon Time-dependent Loss Graph in the Menu tab of the Tree Menu.

Tendon: Select the tendon for which the effective prestresses will be produced.

Stage: Construction stage

Step: Step if defined

The change of prestressing forces over the entire construction stages is sequentially produced for the selected tendon.

Note
The instantaneous prestress loss represents the difference between the prestressing force at the time of tensioning the tendon and the prestressing force in the tendon in the immediately subsequent construction stage. However, no external forces shall be applied at that construction stage.
