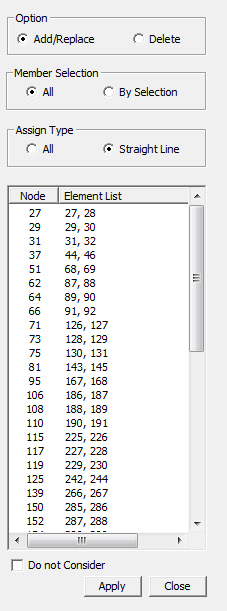

Option
Add/Replace: A new elements
an be defined or an existing element can be revised to
assign same beam rebar at joints.
Delete: Assigned data
can be deleted. You may either select the elements to
be deleted from the model window or the Element List window.
Member Selection
All: All is selected
if all the elements are to be assigned as Same Beam Rebar
at Joints.
By Selection: Same Beam
Rebar at Joints is assigned to selected elements.
Assign Type
All: All is selected
if all the elements are to be assigned regardless of the
angle between two beam elements.
Straight Line: Same
Beam Rebar is assigned to the continuous beam elements
in a straight line.
Note
1
When a number of elements are assigned a single Member
using Member Assignment, the corresponding elements are
displayed with " * " mark in the Element List
window (ex. 14*).
Note 2
This function is applicable in the following conditions:
- Material type: Concrete
- Element type: General beam element
- Member Type: Beam type
- Identical section property
- Design Criteria for Rebars by
Member should not be defined. |
Revision of Gen 2014
(v2.1)
