Serviceability Parameters







Define stress parameters, control parameters of crack and deflection for serviceability checks.



Note
Concrete Serviceability Parameters are applied to beam members only.







From the  Main Menu select Design > Concrete Design Parameter > Serviceability Parameters



Select Design > Concrete Design Parameter > Serviceability Parameters in the Menu tab of the Tree Menu

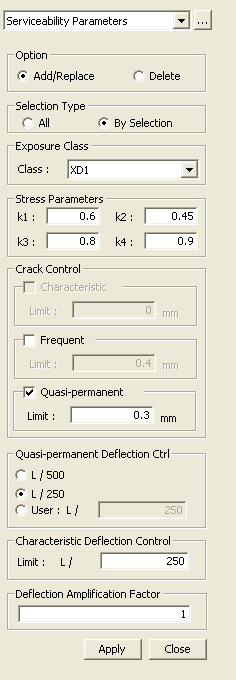

Select a beam member from the Model View to enter the following parameters:



0-Check.jpgOption



Add/Replace: Add a new value or modify a predefined value.



Delete: Delete a predefined value.





0-Check.jpgSelection Type



Select all the members ('All' or select the members by using 'By Selection'





0-Check.jpgExposure Class



Select the Exposure Class (For further details, refer to Table 4.1 of EN 1992-1-1:2004(E)).



Note
Depending on the selected Exposure Class, Stress Parameters and Crack Control options are automatically inputted and, in addition, can be modified by the user.





0-Check.jpgStress Parameters



Enter the strength reduction coefficients. The default values can be changed according to the specified national annex in Concrete Design Code.





0-Check.jpgCrack Control



Enter the limiting crack widths. (For further details, refer to Table 7.1N of EN 1992-1-1:2004(E)).



Note
Crack Control menus become activated or inactivated depending upon the Exposure Class.





0-Check.jpgQuasi-permanent Deflection Ctrl



Enter the limiting deflections for Quasi-permanent combination of loads.





0-Check.jpgCharacteristic Deflection Ctrl



Enter the limiting deflections for Characteristic combination of loads.





0-Check.jpgDeflection Amplification Factor



Enter the Deflection Amplification Factor.





 tri.jpgRevision of Gen 2014 (v1.1)



Q1. What is the Deflection Amplification Factor in Serviceability Parameters?
