Convert Meta Files to DXF Files







Convert a file saved in the Windows Meta File (EMF) format into an AutoCAD DXF file.







From the Main Menu select Tools > Convert Meta Files to DXF Files.

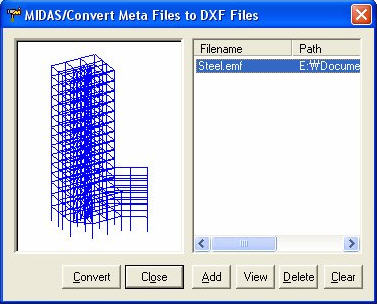

MIDAS/Convert Meta Files to DXF Files dialog box

Click 0-Add.jpg to register an EMF file to be displayed. Subsequently, Select the registered EMF file and cick0-View.jpg  .

Then a figure will appear in the list window of the dialog box. Clicking 0-Convert.jpg will convert the EMF file into an AutoCAD DXF file.
